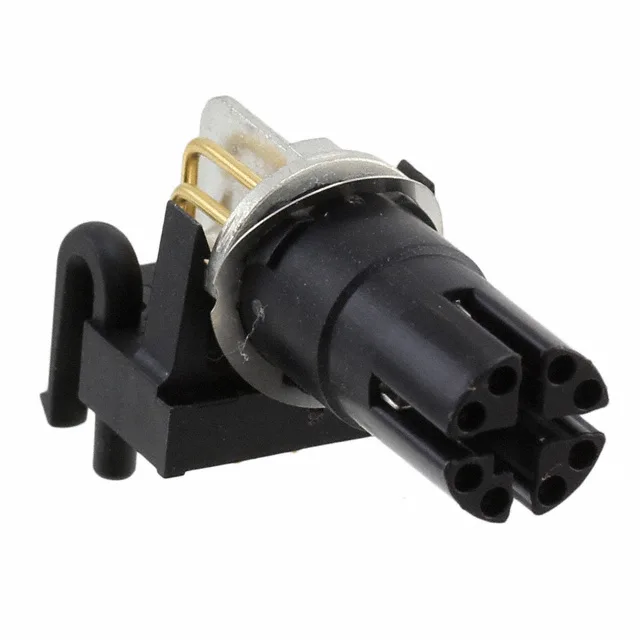

CONN FMALE INSERT 8POS SOLDER
$61.08Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | SACC |
| Mounting type | Panel Mount, Through Hole, Right Angle |
| Connector type | Insert, Female Sockets |
| Voltage rating | 50VAC, 60VDC |
| Current rating | 0.5A |
| Ingress protection | IP67 - Dust Tight, Waterproof |
| Operating temperature | -40°C ~ 85°C |
| Insert material | Polyphthalamide (PPA) |
| Contact material | Copper Zinc |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Board Guide, Board Lock, Insert Only, Requires Shell |
| Orientation | X |
| Termination | Solder |
| Positions | 8 (Data) |
| Shell size - insert | M12-8 |
| Contact finish - mating | Gold |
Sourcing this connector
Phoenix Contact 1424180 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Phoenix Contact and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
