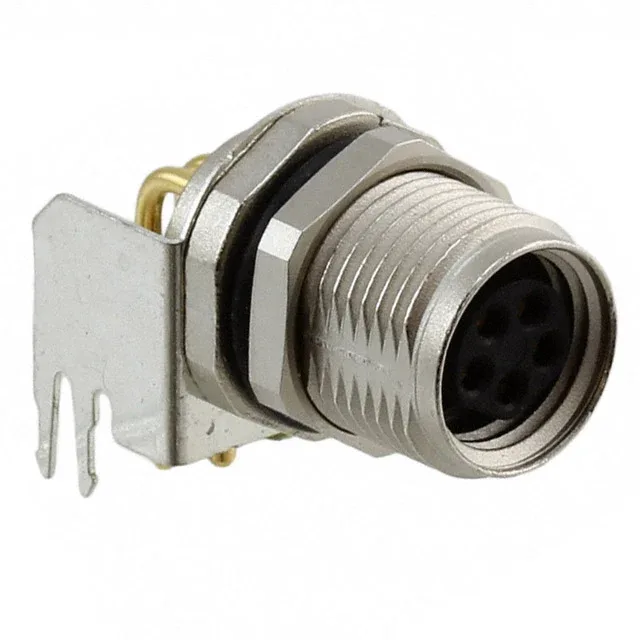

Phoenix Contact 1424239
MPN1424239
Active
CONN RCPT FMALE 5POS GOLD SOLDER
$45.35Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDSI
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DSI |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 30VAC/DC |
| Current rating | 3A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -25°C ~ 85°C |
| Color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Metal |
| Material flammability rating | UL94 HB |
| Package | Bulk |
| Features | Board Lock |
| Orientation | B |
| Termination | Solder |
| Shell finish | Nickel |
| Positions | 5 |
| Shell size - insert | M8-5 |
| Contact finish - mating | Gold |
