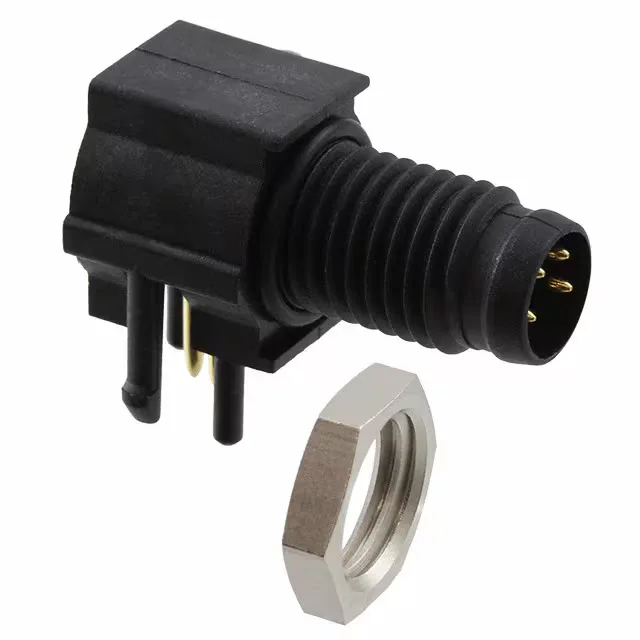

Phoenix Contact 1440096
MPN1440096
Active
CONN PLUG MALE 4POS GOLD SOLDER
$30.15Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesDSIV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DSIV |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Plug, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 50VAC, 60VDC |
| Current rating | 4A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -25°C ~ 85°C |
| Color | Black |
| Shell material | Polyamide (PA66), Nylon 6/6 |
| Insert material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Alloy |
| Primary material | Plastic |
| Material flammability rating | UL94 HB |
| Package | Bulk |
| Features | Board Guide, Board Lock |
| Orientation | A |
| Termination | Solder |
| Positions | 4 |
| Shell size - insert | M8-4 |
| Contact finish - mating | Gold |
