Phoenix Contact 1440669
MPN1440669
Active

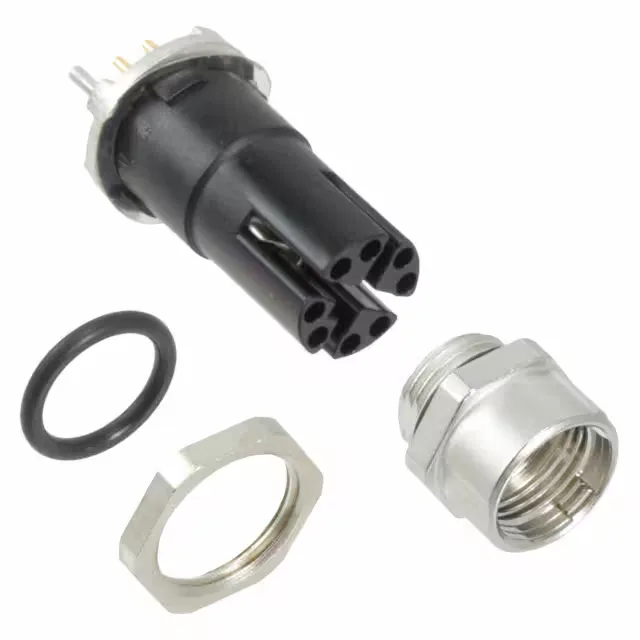

CONN RCPT FMALE 8POS GOLD SOLDER
$51.78Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesDSIV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | DSIV |
| Mounting | Panel Mount, Through Hole |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Push-Twist |
| Voltage rating | 50VAC, 60VDC |
| Current rating | 0.5A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Mounting feature | Bulkhead - Rear Side Nut |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polyphthalamide (PPA) |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Zinc |
| Primary material | Metal |
| Backshell material, plating | Zinc Die Cast, Nickel |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell |
| Termination | Solder |
| Shell finish | Nickel |
| Positions | 8 |
| Shell size - insert | M12-8 |
| Contact finish - mating | Gold |
