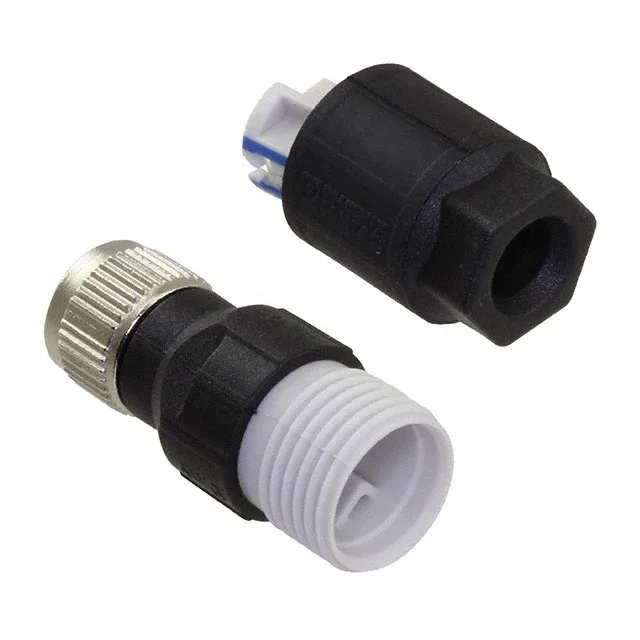

CONN RCPT FMALE 3POS GOLD IDC
$21.25Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | SACC |
| Mounting type | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 48VAC, 60VDC |
| Current rating | 4A |
| Ingress protection | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Cable opening | 0.098\" ~ 0.197\" (2.50mm ~ 5.00mm) |
| Operating temperature | -25°C ~ 80°C |
| Color | Black, Silver |
| Shell material | Zinc Die Cast |
| Insert material | Thermoplastic Polyurethane (TPU), Glass Filled |
| Contact material | Copper Tin |
| Primary material | Metal |
| Backshell material, plating | Polyamide (PA6), Nylon 6 |
| Material flammability rating | UL94 HB |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Orientation | A |
| Termination | IDC |
| Shell finish | Nickel |
| Positions | 3 |
| Shell size - insert | M8-3 |
| Contact finish - mating | Gold |
Sourcing this connector
Phoenix Contact 1441040 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Phoenix Contact and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
