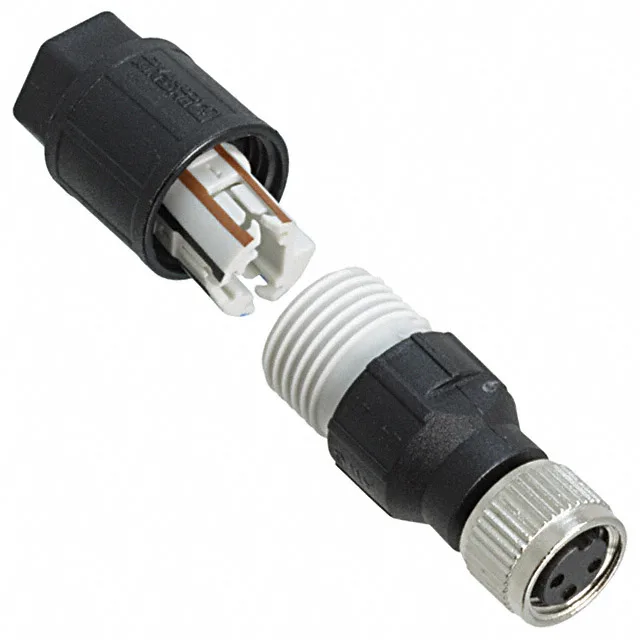

Phoenix Contact 1441066
MPN1441066
Active
CONN RCPT FMALE 3POS GOLD IDC
$21.25Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSACC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SACC |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Fastening type | Threaded |
| Voltage rating | 48VAC, 60VDC |
| Current rating | 4A |
| IP rating | IP65/IP67 - Dust Tight, Water Resistant, Waterproof |
| Cable opening | 0.098\" ~ 0.197\" (2.50mm ~ 5.00mm) |
| Operating temperature | -25°C ~ 80°C |
| Color | Black, Silver |
| Shell material | Zinc Die Cast |
| Insert material | Thermoplastic Polyurethane (TPU), Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Tin |
| Primary material | Metal |
| Backshell material, plating | Polyamide (PA6), Nylon 6 |
| Material flammability rating | UL94 HB |
| Package | Bulk |
| Features | Backshell, Coupling Nut |
| Orientation | A |
| Termination | IDC |
| Shell finish | Nickel |
| Positions | 3 |
| Shell size - insert | M8-3 |
| Contact finish - mating | Gold |
