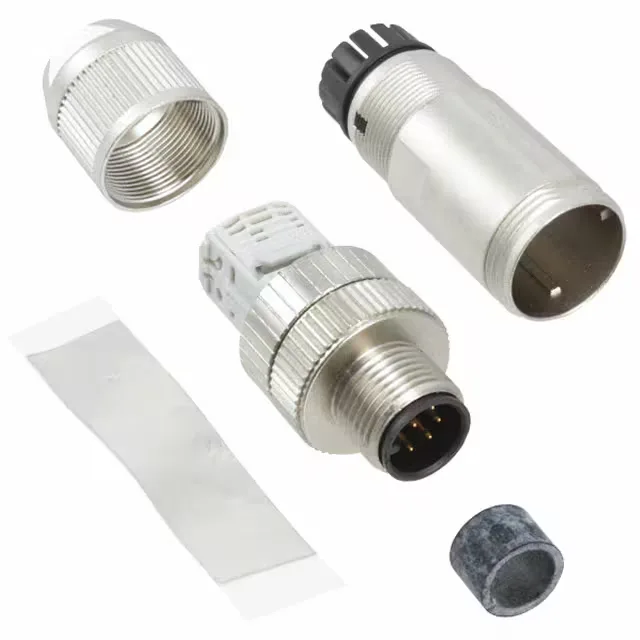

Phoenix Contact 1543236
MPN1543236
Active
CONN PLUG MALE 8POS GOLD IDC
$70.01Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesSACC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | SACC |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Threaded |
| Voltage rating | 30VAC/DC |
| Current rating | 2A |
| IP rating | IP67 - Dust Tight, Waterproof |
| Cable opening | 0.157\" ~ 0.315\" (4.00mm ~ 8.00mm) |
| Operating temperature | -40°C ~ 85°C |
| Color | Silver |
| Shell material | Zinc Die Cast |
| Insert material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Contact material | Copper Tin |
| Primary material | Metal |
| Backshell material, plating | Zinc Die Cast, Nickel |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell |
| Shielding | Shielded |
| Orientation | A |
| Termination | IDC |
| Shell finish | Nickel |
| Positions | 8 |
| Shell size - insert | M12-8 |
| Contact finish - mating | Gold |
