Phoenix Contact 1708595
MPN1708595
Active

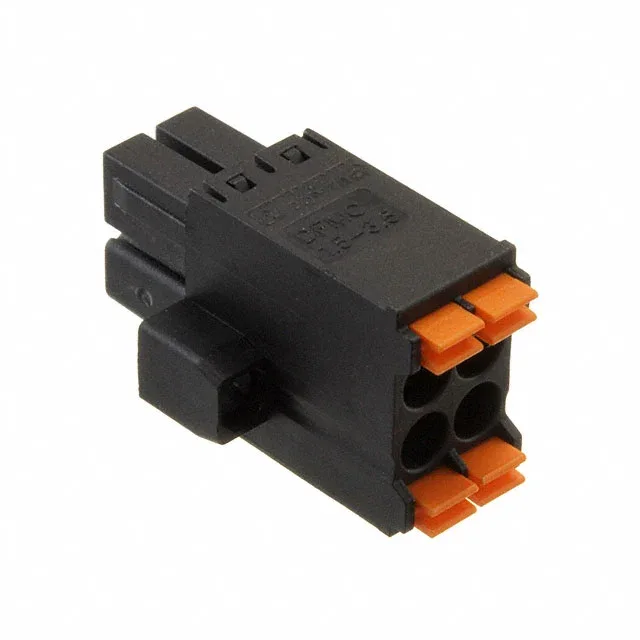

TERM BLOCK PLUG 4POS STR 3.5MM
$4.78Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON DFMC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | COMBICON DFMC |
| Mounting | Free Hanging (In-Line) |
| Voltage - IEC | 160 V |
| Current - IEC | 8A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
| Color | Black |
| Insulation height | 0.522\" (13.25mm) |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Number of levels | 2 |
| Termination style | Screwless - Push-In Spring |
| Positions | 4 |
| Positions per level | 2 |
| Contact mating finish | Tin |
