Phoenix Contact 1709173
MPN1709173
Active

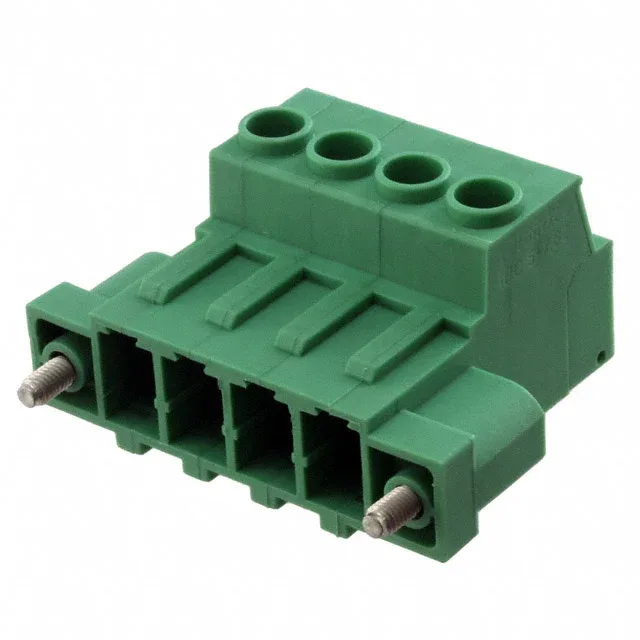

TERM BLOCK PLUG 4POS STR 7.62MM
$17.13Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON IPC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Male Pins |
| Series | COMBICON IPC |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 1 kV |
| Current - UL | 41 A |
| Current - IEC | 41A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 8-24 AWG |
| Wire gauge or range - mm2 | 0.2-10mm² |
| Color | Green |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.902\" (22.90mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
| Package | Bulk |
| Features | Mating Flange |
| Screw size | M3 |
| Torque - screw | 0.7-0.8 Nm (6.2-7.1 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
