Phoenix Contact 1709460
MPN1709460
Active

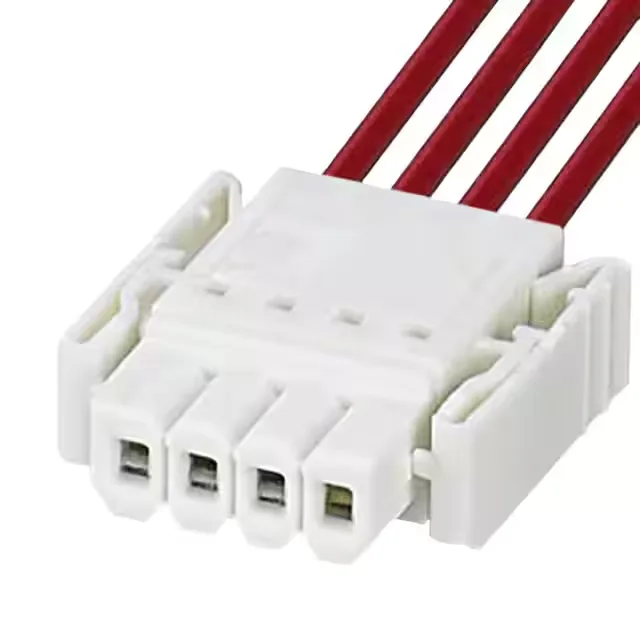

TERM BLOCK PLUG 4POS STR 2.5MM
$1.79Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON PTSM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | COMBICON PTSM |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Voltage - IEC | 160 V |
| Current - UL | 5 A |
| Current - IEC | 6A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 20-26 AWG |
| Wire gauge or range - mm2 | 0.14-0.5mm² |
| Color | White |
| Pitch | 0.098\" (2.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Latches |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
