Phoenix Contact 1718481
MPN1718481
Active

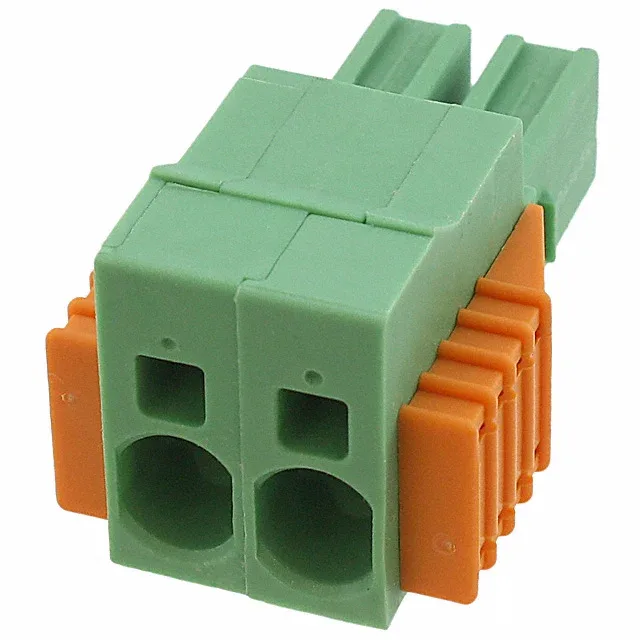

TERM BLOCK PLUG 2POS STR 7.62MM
$5.44Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON SPC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | COMBICON SPC |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 600 V |
| Voltage - IEC | 1 kV |
| Current - UL | 35 A |
| Current - IEC | 41A |
| Plug wire entry | 180° |
| Wire strip length | 15mm |
| Wire gauge or range - AWG | 8-24 AWG |
| Wire gauge or range - mm2 | 0.2-10mm² |
| Color | Green |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.780\" (19.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
| Package | Bulk |
| Features | Latch Lock |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
