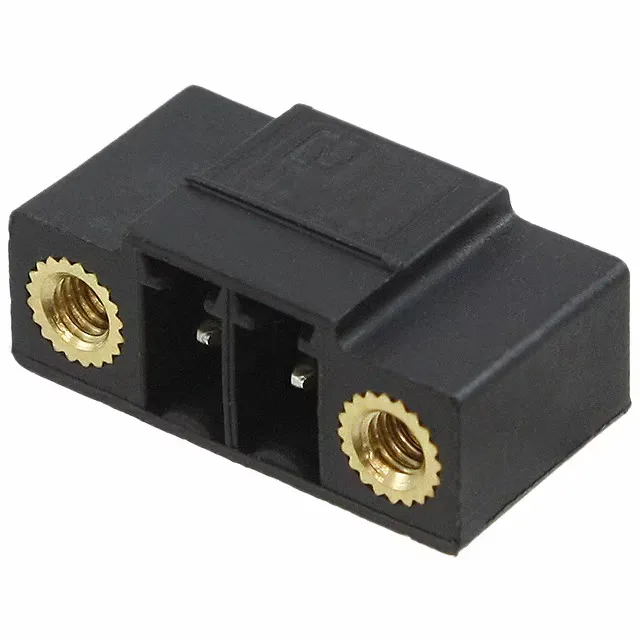

Phoenix Contact 1727566

Phoenix Contact 1727566

MPN1727566
Active

TERM BLOCK HDR 2POS 90DEG 3.5MM

$3.34Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON MC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1727566 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesCOMBICON MC
MountingThrough Hole
Voltage - UL300 V
Voltage - IEC160 V
Current - UL8 A
Current - IEC8A
ColorBlack
Insulation height0.285\" (7.25mm)
Pitch0.138\" (3.50mm)
PackageBulk
FeaturesMating and Mounting Flange

All specifications

1727566 additional specifications
ParameterValue
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.134\" (3.40mm)
Positions2
Positions per level2
Contact mating finishTin
