Phoenix Contact 1740398
MPN1740398
Active

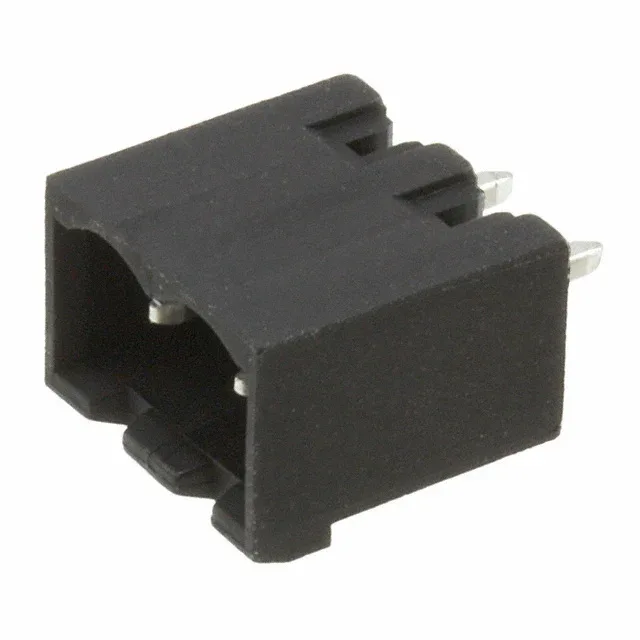

TERM BLOCK HDR 2POS VERT 5MM
$0.88Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON MSTBVA
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | COMBICON MSTBVA |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 12 A |
| Current - IEC | 12A |
| Color | Black |
| Insulation height | 0.472\" (12.00mm) |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.154\" (3.90mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
