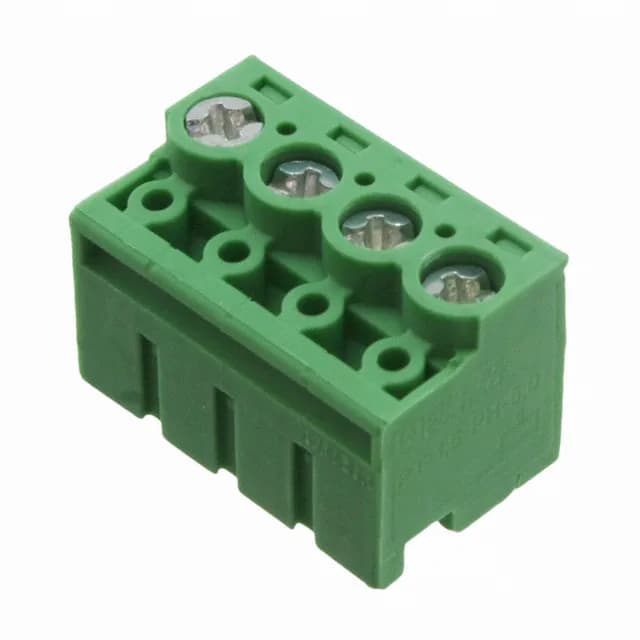

Phoenix Contact 1755606
MPN1755606
Active
TERM BLOCK PLUG 4POS 90DEG 5MM
$1.46Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON PT
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | COMBICON PT |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 630 V |
| Current - UL | 10 A |
| Current - IEC | 10A |
| Plug wire entry | 90° |
| Wire strip length | 6mm |
| Wire gauge or range - AWG | 14-28 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Color | Green |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.518\" (13.15mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Torque - screw | 0.35-0.4 Nm (3.1-3.5 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
