Phoenix Contact 1758814
MPN1758814
Active

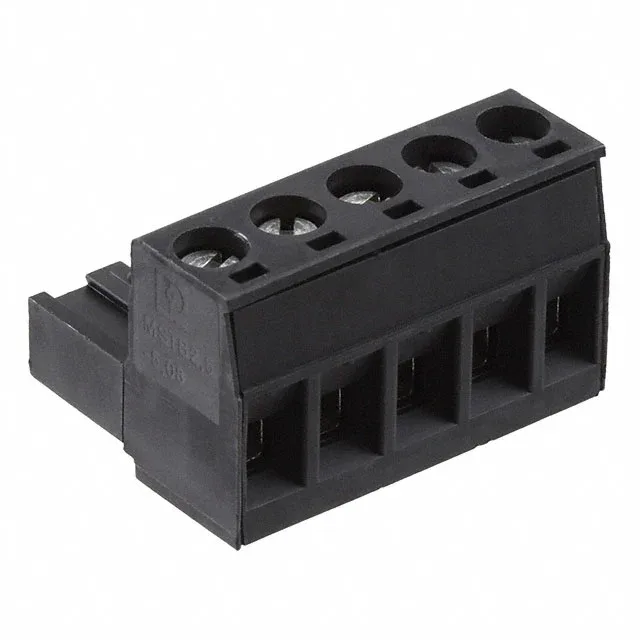

TERM BLOCK PLUG 5POS STR 5.08MM
$6.23Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON MSTB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | COMBICON MSTB |
| Mounting | Free Hanging (In-Line) |
| Voltage - IEC | 250 V |
| Current - IEC | 12A |
| Plug wire entry | 180° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Color | Black |
| Insulation height | 0.591\" (15.00mm) |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Retention Latches (Non-Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
