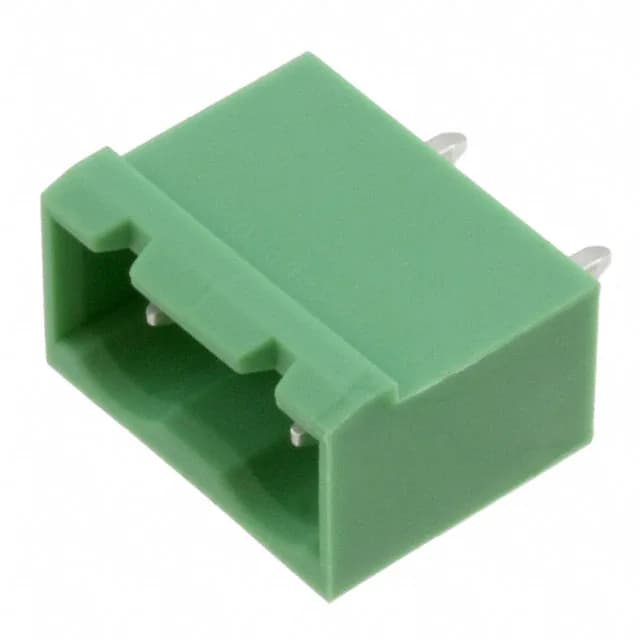

Phoenix Contact 1766770
MPN1766770
Active
TERM BLOCK HDR 2POS VERT 7.62MM
$1.36Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON GMSTBVA
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | COMBICON GMSTBVA |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 630 V |
| Current - UL | 15 A |
| Current - IEC | 12A |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.472\" (12.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.300\" (7.62mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.154\" (3.90mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
