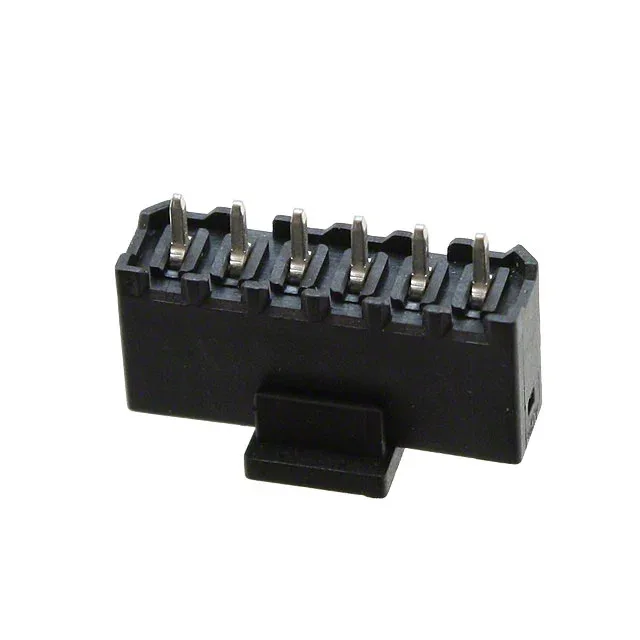

Phoenix Contact 1778599
MPN1778599
Active
TERM BLOCK HDR 6POS VERT 2.5MM
$1.05Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON PTSM
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | COMBICON PTSM |
| Mounting | Through Hole |
| Voltage - IEC | 160 V |
| Current - IEC | 6A |
| Color | Black |
| Housing material | Liquid Crystal Polymer (LCP) |
| Insulation height | 0.295\" (7.50mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.098\" (2.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place Cap |
All specifications
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.083\" (2.10mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
