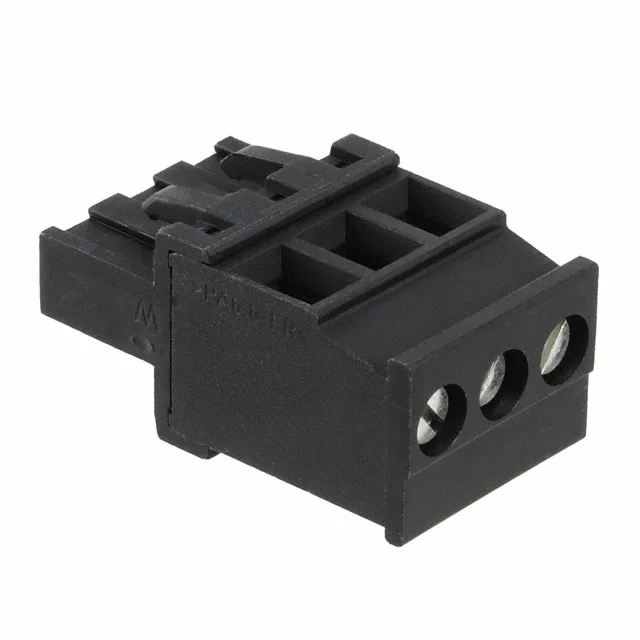

Phoenix Contact 1783708
MPN1783708
Active
TERM BLOCK PLUG 3POS 5.08MM
$4.38Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON MVSTBR
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | COMBICON MVSTBR |
| Mounting | Free Hanging (In-Line) |
| Voltage - IEC | 250 V |
| Current - IEC | 12A |
| Plug wire entry | 90° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Color | Black |
| Insulation height | 1.024\" (26.01mm) |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Retention Latches (Wire Side) |
| Screw size | M3 |
| Torque - screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
