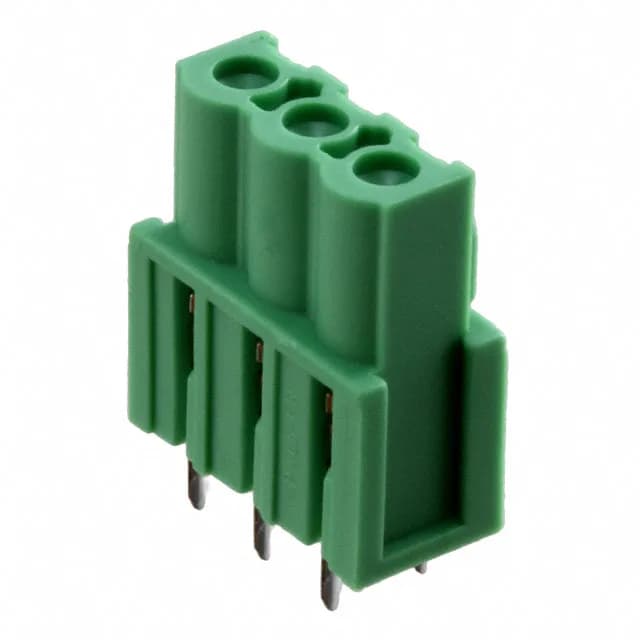

Phoenix Contact 1785955
MPN1785955
Active
TERM BLOCK HDR 3POS VERT 5.08MM
$3.09Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON ICV
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Female Sockets |
| Series | COMBICON ICV |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 630 V |
| Current - UL | 10 A |
| Current - IEC | 12A |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.748\" (19.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Retention Latches |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.142\" (3.60mm) |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
