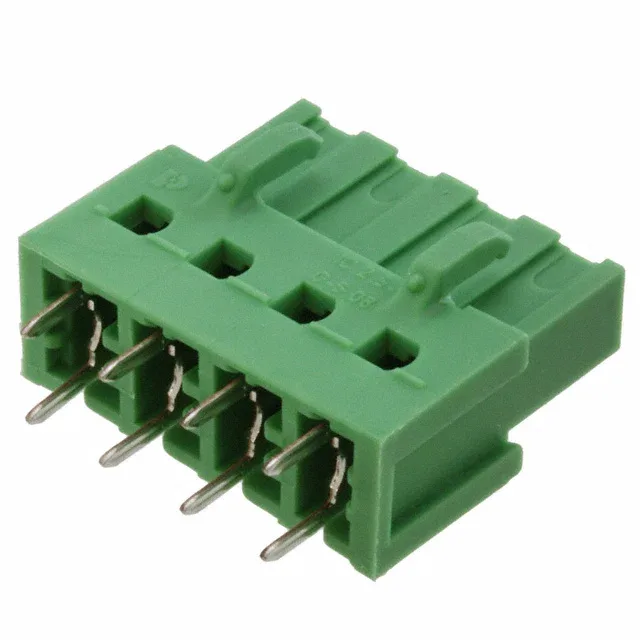

Phoenix Contact 1785968
MPN1785968
Active
TERM BLOCK HDR 4POS VERT 5.08MM
$5.98Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON ICV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Female Sockets |
| Series | COMBICON ICV |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 630 V |
| Current - UL | 10 A |
| Current - IEC | 12A |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.748\" (19.00mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Retention Latches |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.142\" (3.60mm) |
| Positions | 4 |
| Positions per level | 4 |
| Contact mating finish | Tin |
