Phoenix Contact 1786446
MPN1786446
Active

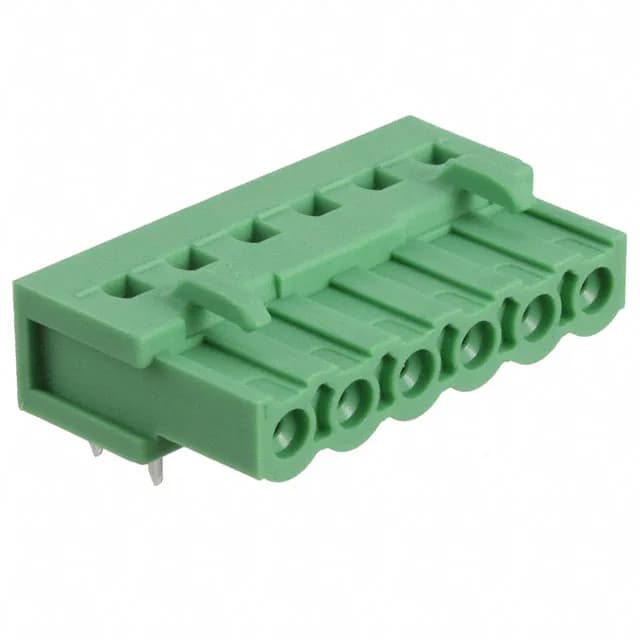

TERM BLOCK HDR 6POS 90DEG 5.08MM
$6.79Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON IC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Female Sockets |
| Series | COMBICON IC |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 630 V |
| Current - UL | 10 A |
| Current - IEC | 12A |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.402\" (10.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Retention Latches |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
