Phoenix Contact 1786879

Phoenix Contact 1786879

MPN1786879
Active

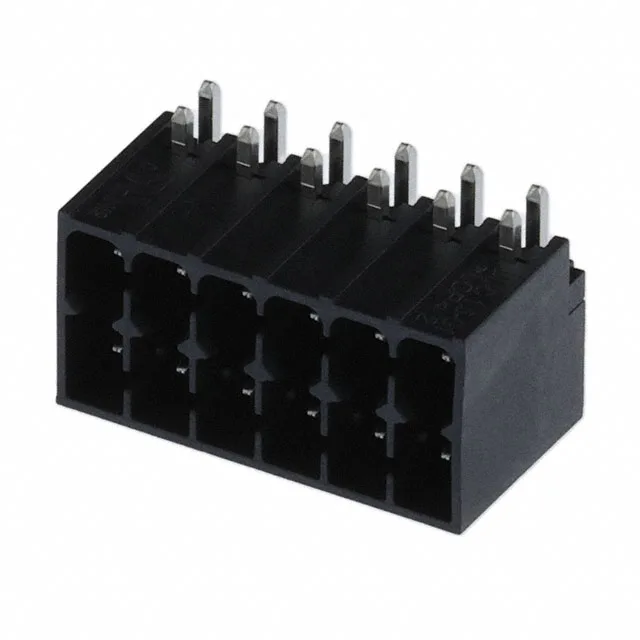

TERM BLOCK HDR 12POS 90DEG 3.5MM

$5.5Ref. price · indicative, final on quote
Phoenix Contact 1786879 datasheet (PDF)
RoHSROHS3 Compliant
SeriesCOMBICON DMC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1786879 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesCOMBICON DMC
MountingThrough Hole
Voltage - UL150 V
Voltage - IEC250 V
Current - UL8 A
Current - IEC8A
ColorBlack
Housing materialLiquid Crystal Polymer (LCP)
Insulation height0.425\" (10.80mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)

All specifications

1786879 additional specifications
ParameterValue
PackageBulk
Number of levels2
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.079\" (2.00mm)
Positions12
Positions per level6
Contact mating finishTin
