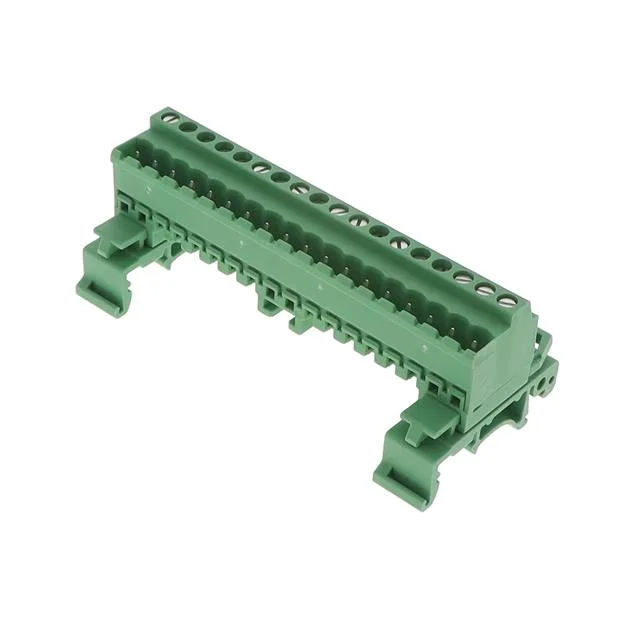

TERM BLK PLUG 18POS 42.5MM GREEN
$39.67Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug Connection - Ganged |
| Series | COMBICON UMSTBVK |
| Mounting type | DIN Rail |
| Voltage - UL | 300 V |
| Voltage - IEC | 300 V |
| Current - UL | 12 A |
| Current - IEC | 12 A |
| Terminal - width | 42.5mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Height | 1.984\" (50.40mm) |
| Housing color | Green |
| Material - insulation | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-2 |
| Length | 3.660\" (92.96mm) |
| Package | Bulk |
| Number of levels | 1 |
| Stripping length | 7mm |
| Termination style | Plug Receptacles, Screw |
| Positions | 18 |
Sourcing this connector
Phoenix Contact 1788279 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Phoenix Contact and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
