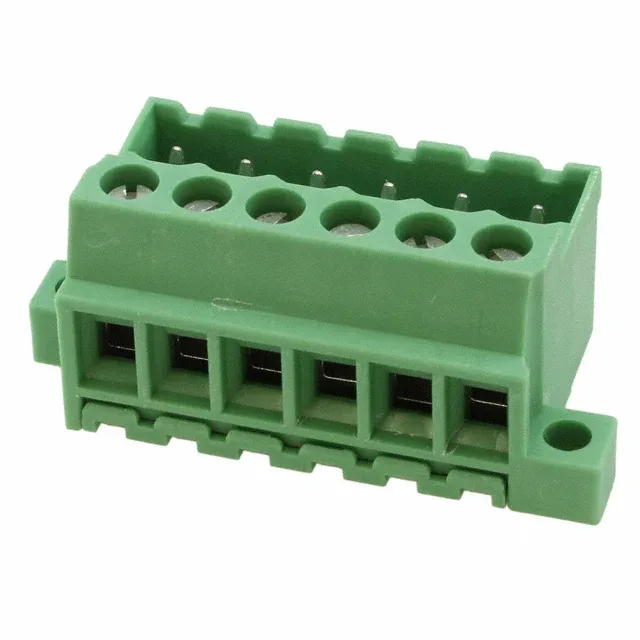

Phoenix Contact 1788570
MPN1788570
Active
TERM BLOCK RCPT 6POS 5.08MM
$14.55Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON MVSTBU
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Receptacle, Male Pins |
| Series | COMBICON MVSTBU |
| Mounting | Board Mount |
| Voltage - UL | 300 V |
| Voltage - IEC | 630 V |
| Current - UL | 10 A |
| Current - IEC | 12A |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 12-30 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Insulation height | 0.681\" (17.30mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Mounting Flange |
| Screw size | M3 |
| Torque - screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
