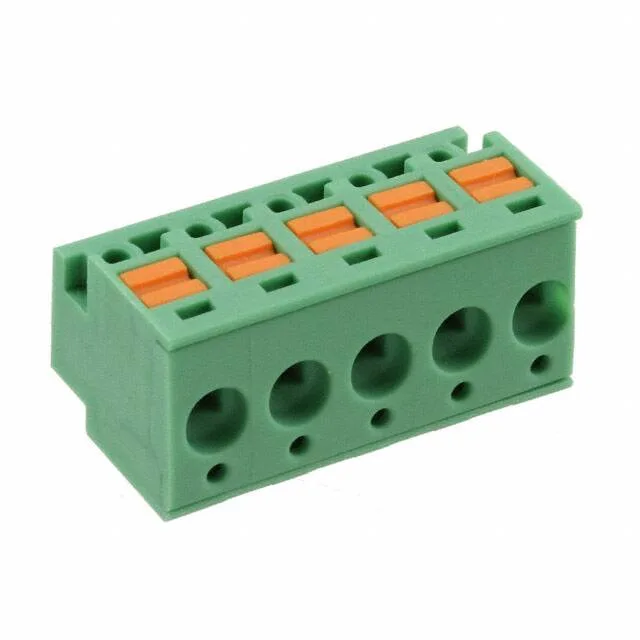

Phoenix Contact 1805546
MPN1805546
Active
TERM BLOCK PLUG 5POS 90DEG 5MM
$1.65Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON PTS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Series | COMBICON PTS |
| Mounting | Free Hanging (In-Line) |
| Voltage - IEC | 600 V |
| Current - IEC | 10A |
| Plug wire entry | 90° |
| Wire strip length | 8mm |
| Wire gauge or range - AWG | 14-26 AWG |
| Wire gauge or range - mm2 | 0.2-2.5mm² |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.461\" (11.70mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Screwless - Spring Cage, Tension Clamp |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
