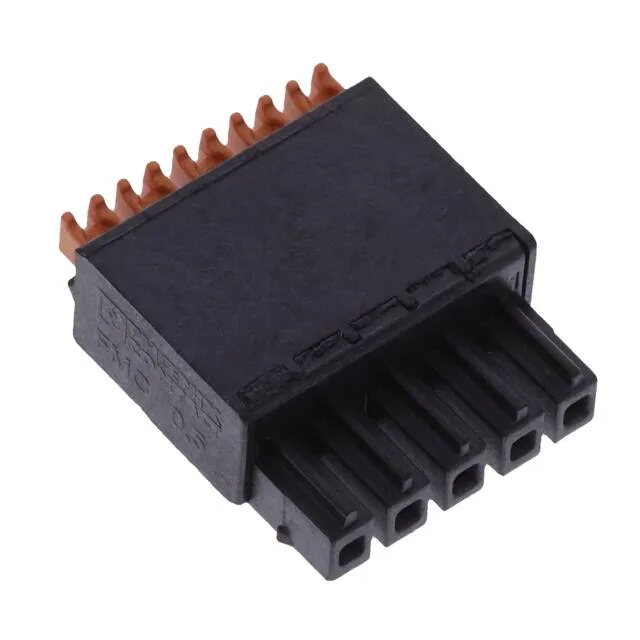

Phoenix Contact 1821122
MPN1821122
Active
TERM BLOCK PLUG 5POS STR 2.54MM
$9.76Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMICRO-COMBICON FMC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | MICRO-COMBICON FMC |
| Mounting | Through Hole |
| Voltage - UL | 150 V |
| Voltage - IEC | 160 V |
| Current - UL | 6 A |
| Current - IEC | 6A |
| Plug wire entry | 180° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 20-26 AWG |
| Wire gauge or range - mm2 | 0.14-0.5mm² |
| Color | Black |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Liquid Crystal Polymer (LCP) |
| Insulation height | 0.213\" (5.40mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Gold |
