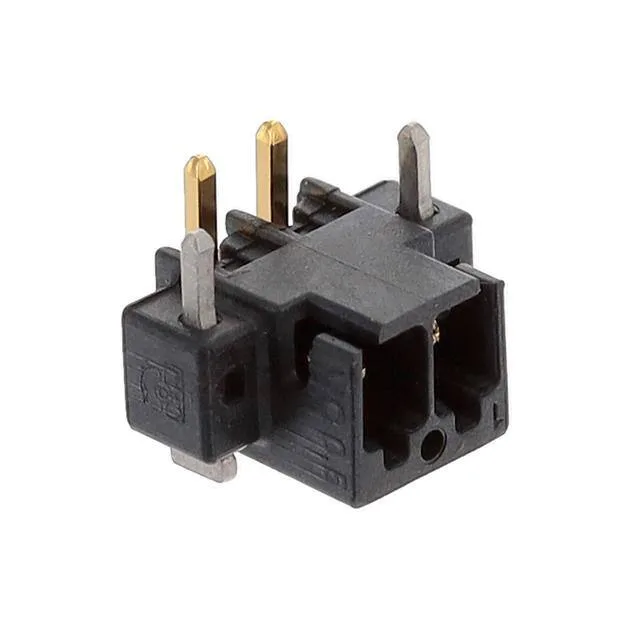

Phoenix Contact 1821245

Phoenix Contact 1821245

MPN1821245
Active

HEADER NOMINAL CURRENT: 6 A RATE

$2.99Ref. price · indicative, final on quote
Phoenix Contact 1821245 datasheet (PDF)
RoHSRoHS Compliant
SeriesMICRO-COMBICON MC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1821245 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesMICRO-COMBICON MC
MountingThrough Hole
Voltage - UL150 V
Voltage - IEC160 V
Current - UL6 A
Current - IEC6A
ColorBlack
Housing materialLiquid Crystal Polymer (LCP)
Insulation height0.191\" (4.85mm)
Material flammability ratingUL94 V-0
Pitch0.100\" (2.54mm)

All specifications

1821245 additional specifications
ParameterValue
PackageBulk
FeaturesSolder Retention
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.079\" (2.00mm)
Positions2
Positions per level2
Contact mating finishGold
