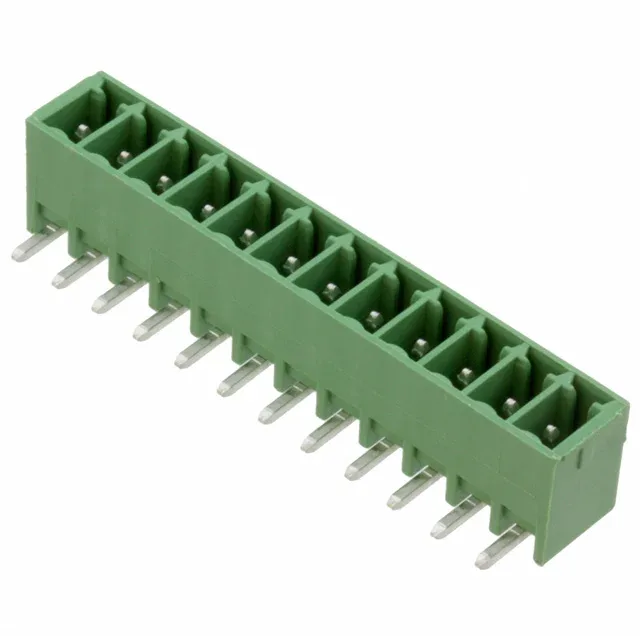

Phoenix Contact 1844317

Phoenix Contact 1844317

MPN1844317
Active

TERM BLOCK HDR 12POS 90DEG 3.5MM

$6.85Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON MC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1844317 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesCOMBICON MC
MountingThrough Hole
Voltage - UL300 V
Voltage - IEC250 V
Current - UL8 A
Current - IEC12A
ColorGreen
Housing materialPolybutylene Terephthalate (PBT)
Insulation height0.285\" (7.25mm)
Material flammability ratingUL94 V-0
Pitch0.138\" (3.50mm)

All specifications

1844317 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.134\" (3.40mm)
Positions12
Positions per level12
Contact mating finishTin
