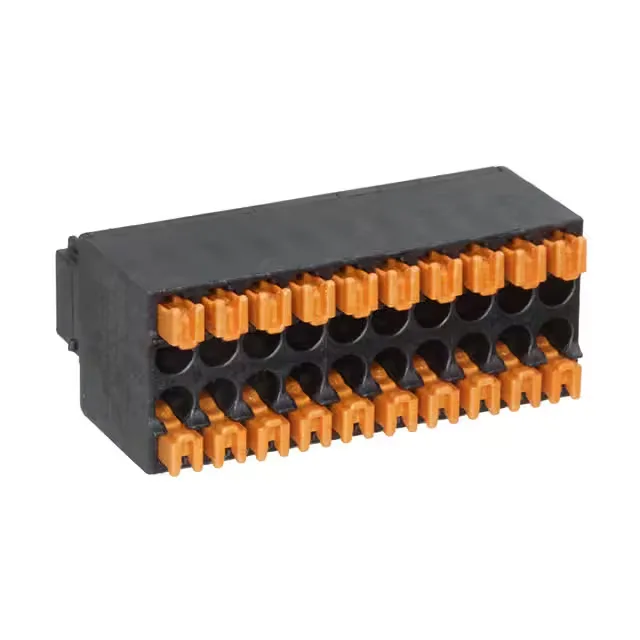

Phoenix Contact 1844659
MPN1844659
Active
TERM BLOCK PLUG 20POS STR 2.54MM
$21.94Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON DFMC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | COMBICON DFMC |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Voltage - IEC | 160 V |
| Current - UL | 6 A |
| Current - IEC | 6A |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 20-26 AWG |
| Wire gauge or range - mm2 | 0.14-0.5mm² |
| Color | Black |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Number of levels | 2 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 20 |
| Positions per level | 10 |
| Contact mating finish | Gold |
