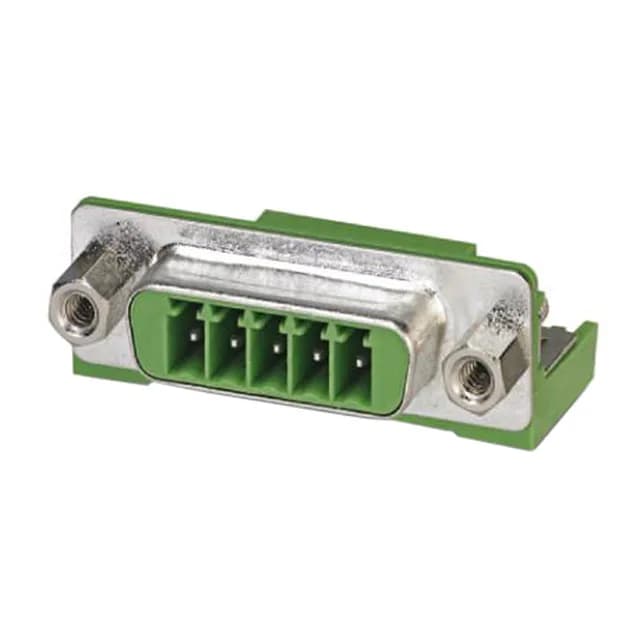

Phoenix Contact 1848135
MPN1848135
Active
TERM BLOCK HDR 5POS 90DEG 3.5MM
$4.61Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPOWER SUBCON
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | POWER SUBCON |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 250 V |
| Current - UL | 8 A |
| Current - IEC | 8A |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.539\" (13.70mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Lock, DB15 Shape, Mating Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Tin |
