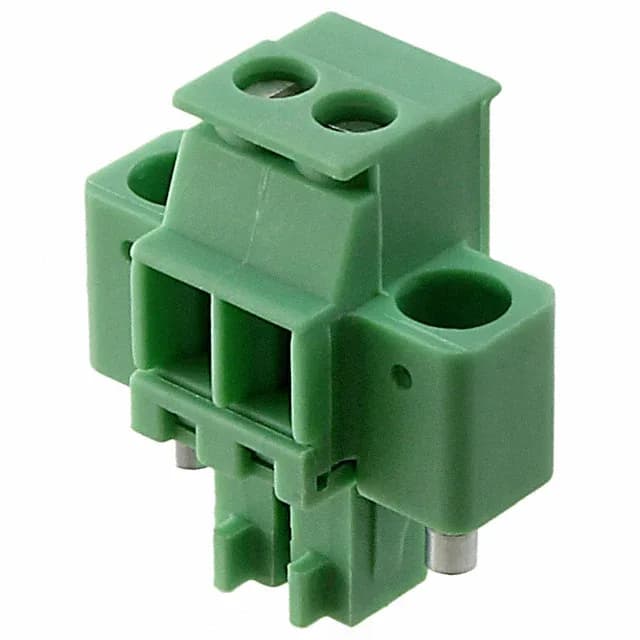

Phoenix Contact 1863301
MPN1863301
Active
TERM BLOCK PLUG 2POS 90DEG 3.5MM
$2.5Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON MCVR
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | COMBICON MCVR |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Voltage - IEC | 320 V |
| Current - UL | 8 A |
| Current - IEC | 8A |
| Plug wire entry | 90° |
| Wire strip length | 7mm |
| Wire gauge or range - AWG | 14-30 AWG |
| Wire gauge or range - mm2 | 0.14-1.5mm² |
| Color | Green |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.752\" (19.10mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Features | Mating Flange |
| Screw size | M2 |
| Torque - screw | 0.22-0.25 Nm (1.9-2.2 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Rising Cage Clamp |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Tin |
