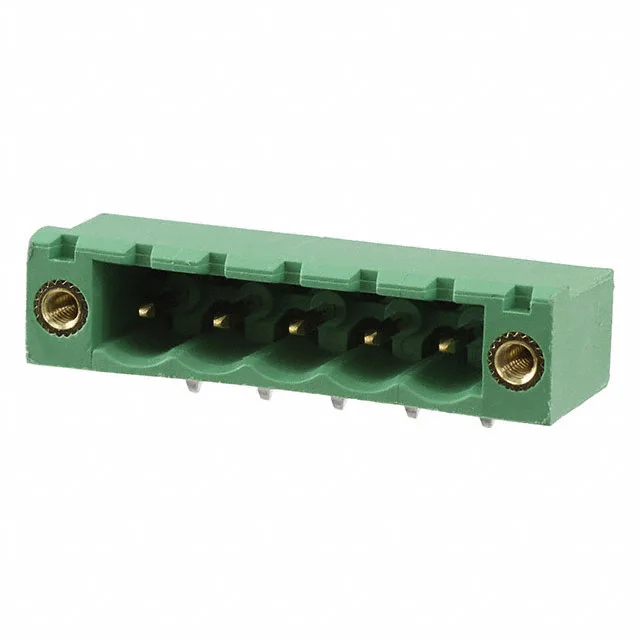

Phoenix Contact 1876631
MPN1876631
Active
TERM BLOCK HDR 5POS 90DEG 5.08MM
$6.51Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesCOMBICON MSTB
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | COMBICON MSTB |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Voltage - IEC | 400 V |
| Current - UL | 15 A |
| Current - IEC | 12A |
| Color | Green |
| Housing material | Polybutylene Terephthalate (PBT) |
| Insulation height | 0.339\" (8.61mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Mating and Mounting Flange |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 5 |
| Positions per level | 5 |
| Contact mating finish | Gold |
