Phoenix Contact 1881367
MPN1881367
Active

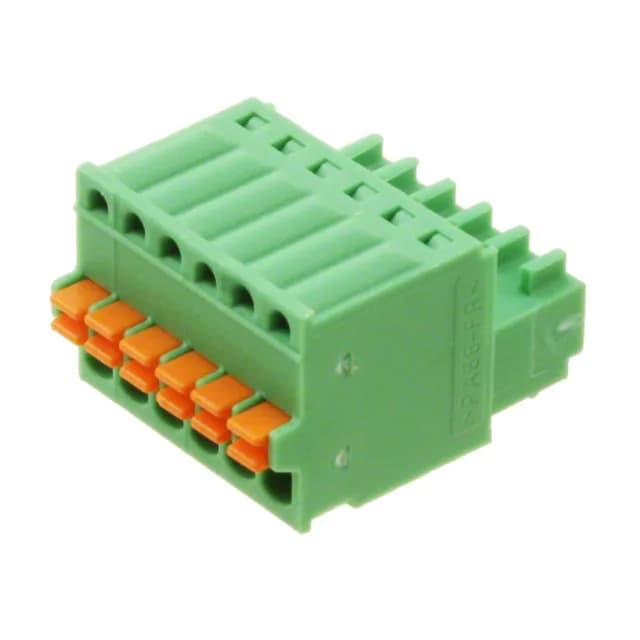

TERM BLOCK PLUG 6POS STR 2.5MM
$9.43Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMICRO-COMBICON FK-MC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | MICRO-COMBICON FK-MC |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 125 V |
| Voltage - IEC | 320 V |
| Current - UL | 4 A |
| Current - IEC | 4A |
| Plug wire entry | 180° |
| Wire strip length | 8mm |
| Wire gauge or range - AWG | 20-28 AWG |
| Wire gauge or range - mm2 | 0.14-0.5mm² |
| Color | Green |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.463\" (11.76mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.098\" (2.50mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Screwless - Leg Spring, Push-In Spring |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
