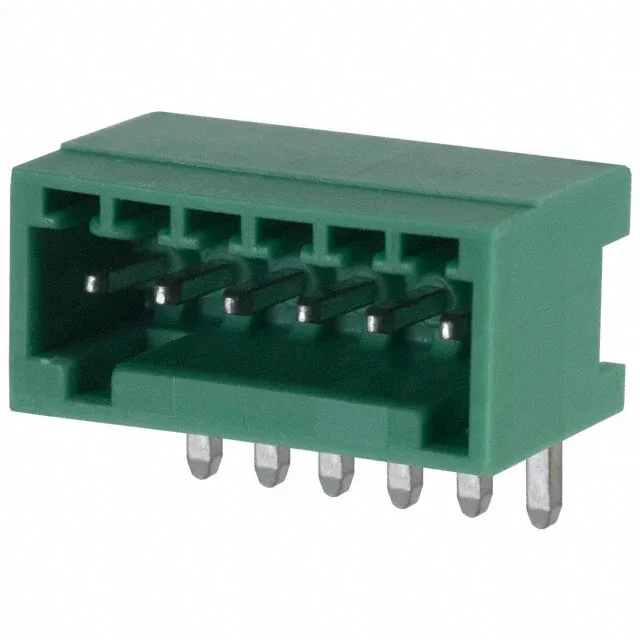

Phoenix Contact 1881480

Phoenix Contact 1881480

MPN1881480
Active

TERM BLOCK HDR 6POS 90DEG 2.5MM

$3.58Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMICRO-COMBICON MC
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

1881480 key specifications
ParameterValue
TypeHeader, Male Pins, Shrouded (4 Side)
SeriesMICRO-COMBICON MC
MountingThrough Hole
Voltage - UL125 V
Voltage - IEC320 V
Current - UL4 A
Current - IEC4A
ColorGreen
Housing materialPolyamide (PA), Nylon
Insulation height0.319\" (8.10mm)
Material flammability ratingUL94 V-0
Pitch0.098\" (2.50mm)

All specifications

1881480 additional specifications
ParameterValue
PackageBulk
Number of levels1
Termination styleSolder
Header orientation90°, Right Angle
Contact tail length0.150\" (3.81mm)
Positions6
Positions per level6
Contact mating finishTin
