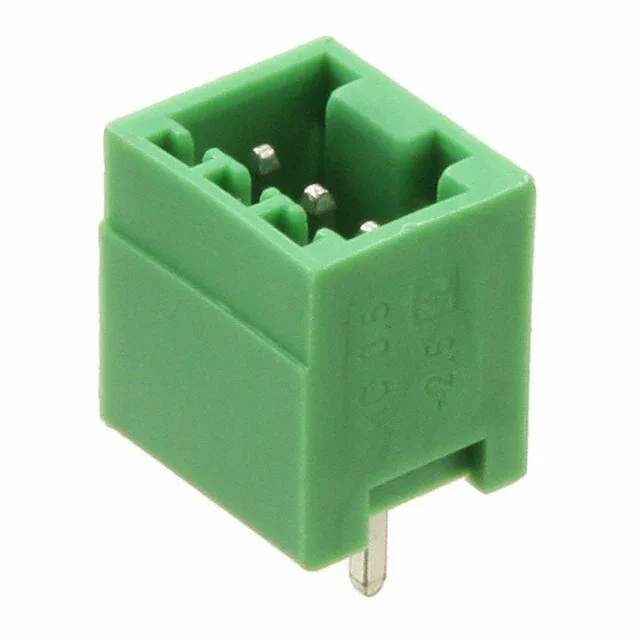

Phoenix Contact 1881561
MPN1881561
Active
TERM BLOCK HDR 3POS VERT 2.5MM
$1.85Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMICRO-COMBICON MCV
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Series | MICRO-COMBICON MCV |
| Mounting | Through Hole |
| Voltage - UL | 125 V |
| Voltage - IEC | 320 V |
| Current - UL | 4 A |
| Current - IEC | 4A |
| Color | Green |
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.398\" (10.11mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.098\" (2.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.138\" (3.50mm) |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
