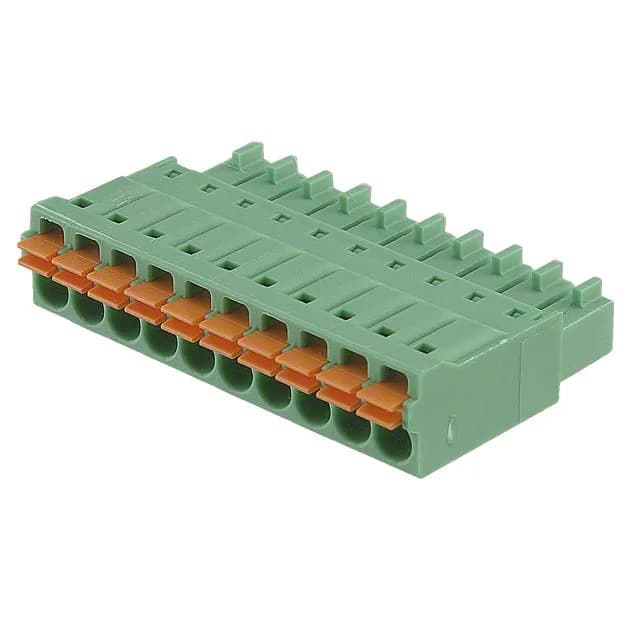

Phoenix Contact 1952348
MPN1952348
Active
TERM BLOCK PLUG 10POS STR 3.5MM
$10.51Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCOMBICON FMC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Series | COMBICON FMC |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 150 V |
| Voltage - IEC | 320 V |
| Current - UL | 8 A |
| Current - IEC | 8A |
| Plug wire entry | 180° |
| Wire strip length | 10mm |
| Wire gauge or range - AWG | 16-24 AWG |
| Wire gauge or range - mm2 | 0.2-1.5mm² |
| Color | Green |
All specifications
| Parameter | Value |
|---|---|
| Housing material | Polyamide (PA), Nylon |
| Insulation height | 0.307\" (7.80mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.138\" (3.50mm) |
| Package | Bulk |
| Number of levels | 1 |
| Termination style | Screwless - Push-In Spring |
| Positions | 10 |
| Positions per level | 10 |
| Contact mating finish | Tin |
