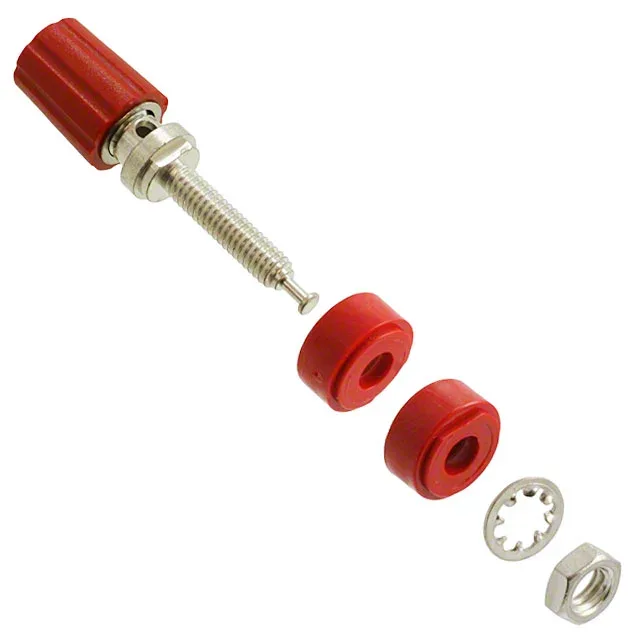

CONN BIND POST KNURLED RED
$5.49Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Standard |
| Voltage rating | 33Vrms/70VDC |
| Current rating | 15 A |
| Color | Red |
| Nut material | Brass |
| Material - body | Brass |
| Material - insulation | Polycarbonate (PC) |
| Package | Bulk |
| Head size | 0.440\" OD (11.18mm) |
| Head style | Knurled |
| Nut plating | Nickel |
| Termination | Threaded and Turret |
| Plating - body | Tin |
| Panel thickness | 0.070\" ~ 0.250\" (1.77mm ~ 6.35mm) |
| Termination thread | 8-32 |
| Cross hole diameter | 0.096\" (2.43mm) |
Sourcing this connector
Pomona Electronics 3760-2 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against Pomona Electronics and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
