Preci-Dip 450-10-248-00-001101
MPN450-10-248-00-001101
Active

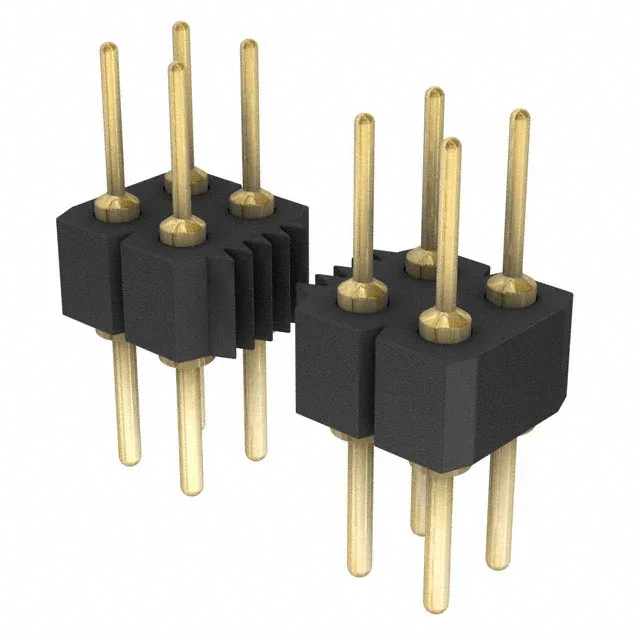

CONN HEADER VERT 48POS 2.54MM
$8.33Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series450
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 450 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 150VDC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.110\" (2.79mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 48 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.164\" (4.17mm) |
| Overall contact length | 0.477\" (12.12mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.156\" (3.96mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
