Preci-Dip 833-83-018-10-453101
MPN833-83-018-10-453101
Active

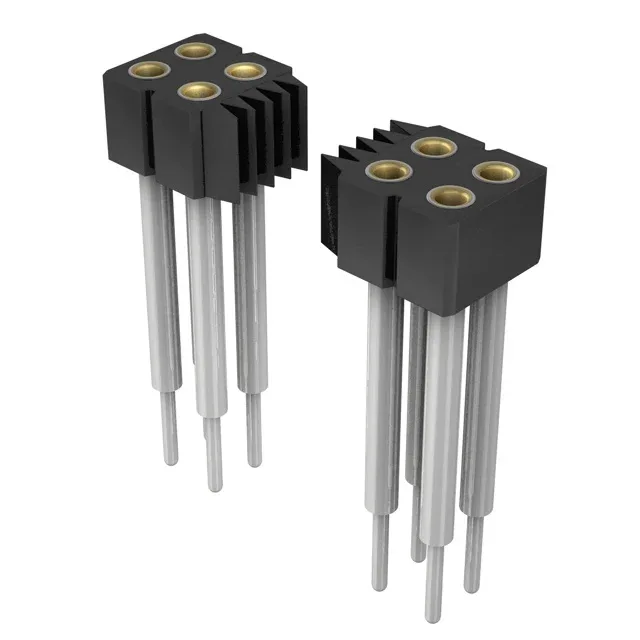

CONN SOCKET 18POS 0.079 GOLD PCB
$4.39Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series833
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 833 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Socket |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.315\" (8.00mm) |
| Insulation material | Liquid Crystal Polymer (LCP), Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 18 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 29.5µin (0.75µm) |
