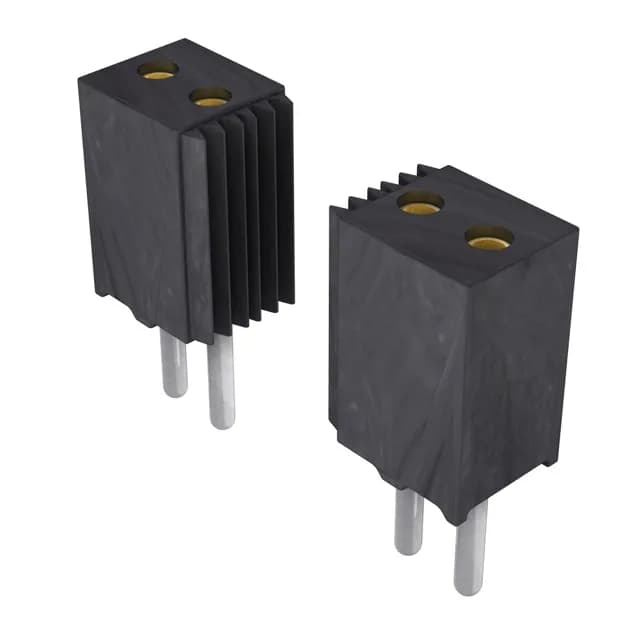

Preci-Dip 851-87-005-10-001101
MPN851-87-005-10-001101
Active
CONN SOCKET 5POS 0.05 GOLD PCB
$1.1900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series851
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 851 |
| Type | Female Socket |
| Mounting | Through Hole |
| Connector type | Socket |
| Fastening type | Push-Pull |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Beryllium Copper |
| Insulation color | Black |
| Insulation height | 0.161\" (4.10mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bulk |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.091\" (2.30mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
