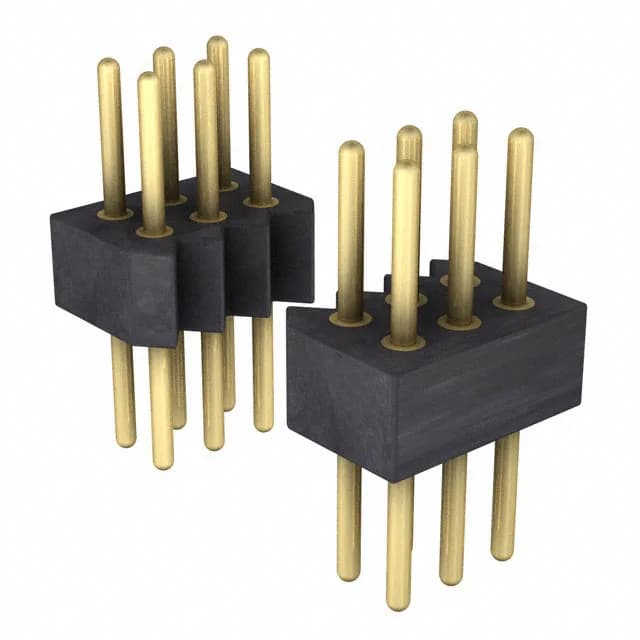

Preci-Dip 854-10-060-10-001101
MPN854-10-060-10-001101
Active
CONN HEADER VERT 60POS 1.27MM
$10.5100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series854
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 854 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 150VDC |
| Current rating | 1A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.075\" (1.90mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 3 |
| Pitch | 0.050\" (1.27mm) |
| Positions | 60 |
| Row spacing - mating | 0.050\" (1.27mm) |
| Contact finish - post | Gold |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.118\" (3.00mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
