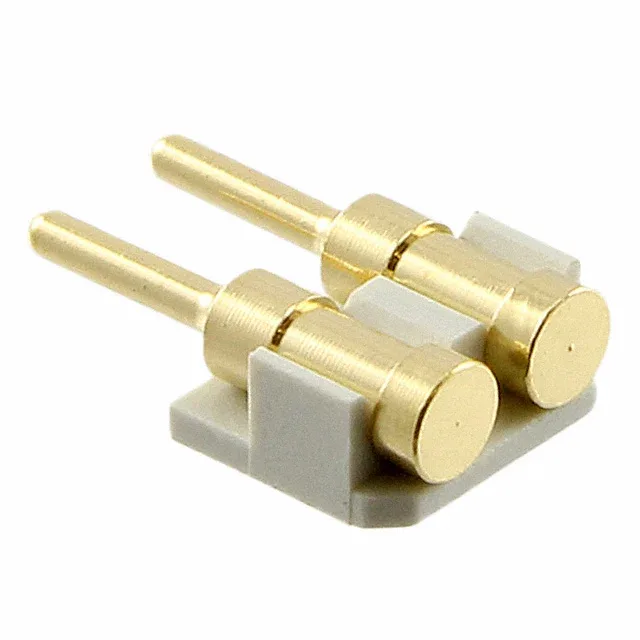

Preci-Dip 8MM-11-0002-02-279191
MPN8MM-11-0002-02-279191
Active
CONN HEADER SMD R/A 2POS 2.54MM
$1.37Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series8mm
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 8mm |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 150VDC |
| Current rating | 3A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.096\" (2.44mm) |
| Insulation material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 2 |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 10.0µin (0.25µm) |
