Pulse Electronics J0B-0384NL
MPNJ0B-0384NL
Active

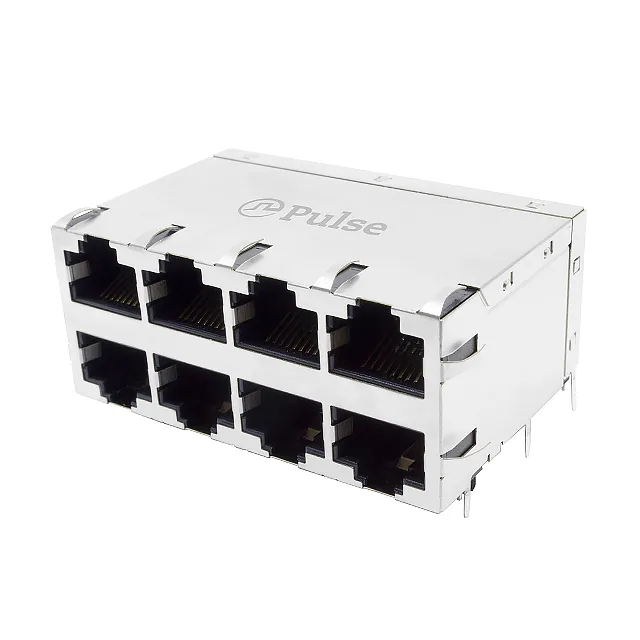

CONN JACK 8PORT 1000 BASE-T PCB
$59.5Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPULSEJACK™ J0B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PULSEJACK™ J0B |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Does Not Contain LED |
| Shield material | Brass |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Height above board | 1.005\" (25.53mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-T, Power over Ethernet+ (PoE+) |
| Tab direction | Up and Down |
| Contact finish | Gold |
| Rows | 2 |
| Number of ports | 8 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of cores per jack | 9 |
