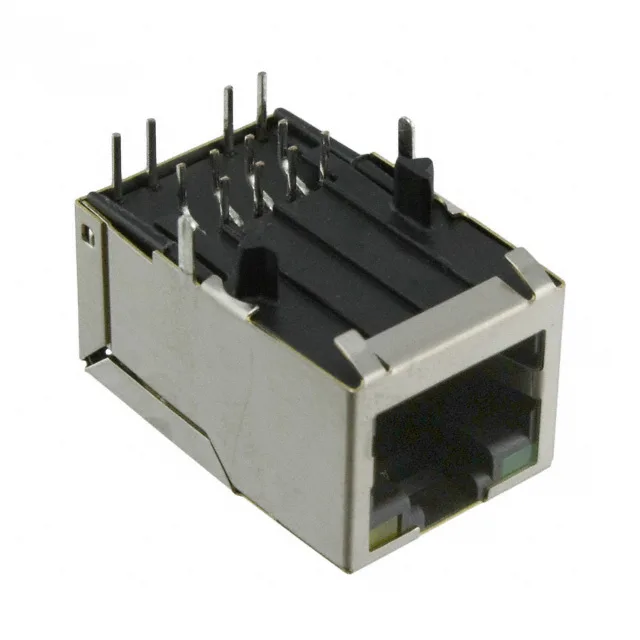

Pulse Electronics J1026F01NL
MPNJ1026F01NL
Active
CONN JACK 1PORT 100 BASE-TX PCB
$8.51Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPULSEJACK™ J1
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PULSEJACK™ J1 |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Does Not Contain LED |
| Shield material | Brass |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Height above board | 0.550\" (13.97mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100 Base-TX |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 15.0µin (0.38µm) |
| Number of cores per jack | 5 |
