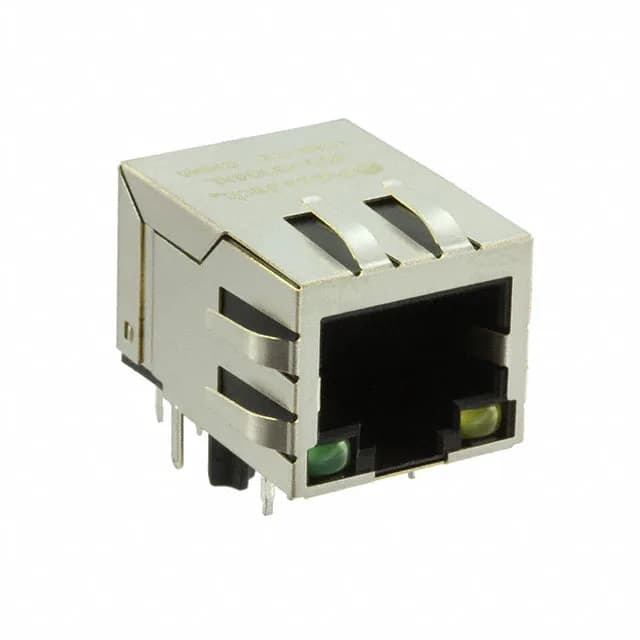

Pulse Electronics JD0-0004NL
MPNJD0-0004NL
Active
CONN JACK 1PORT 100 BASE-TX PCB
$6.6500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPULSEJACK™ JD0
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PULSEJACK™ JD0 |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Green - Yellow |
| Shield material | Brass |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Height above board | 0.531\" (13.49mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100 Base-TX |
| Tab direction | Down |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 6.00µin (0.152µm) |
| Number of cores per jack | 5 |
