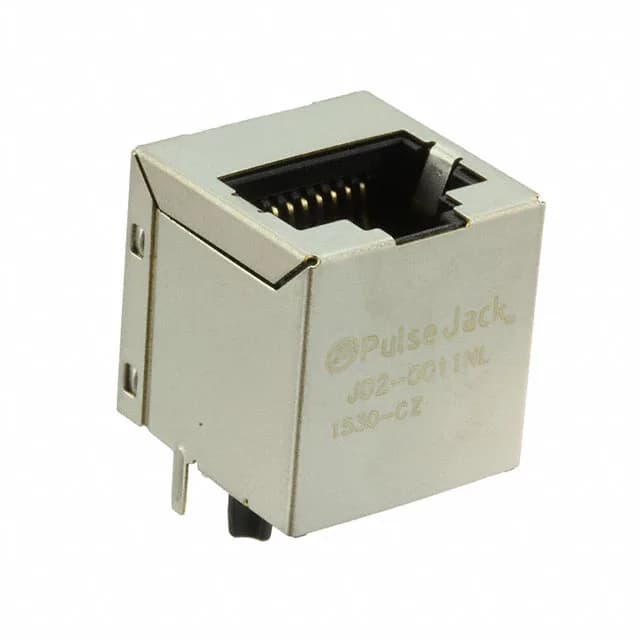

Pulse Electronics JD2-0011NL
MPNJD2-0011NL
Active
CONN JACK 1PORT 100 BASE-TX PCB
$6.1900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Does Not Contain LED |
| Shield material | Brass |
| Contact material | Copper Alloy |
| Housing material | Thermoplastic |
| Height above board | 0.663\" (16.85mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded |
| Orientation | Vertical |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Applications | 10/100 Base-TX, AutoMDIX |
| Tab direction | User Selectable |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 6.00µin (0.152µm) |
| Number of cores per jack | 4 |
