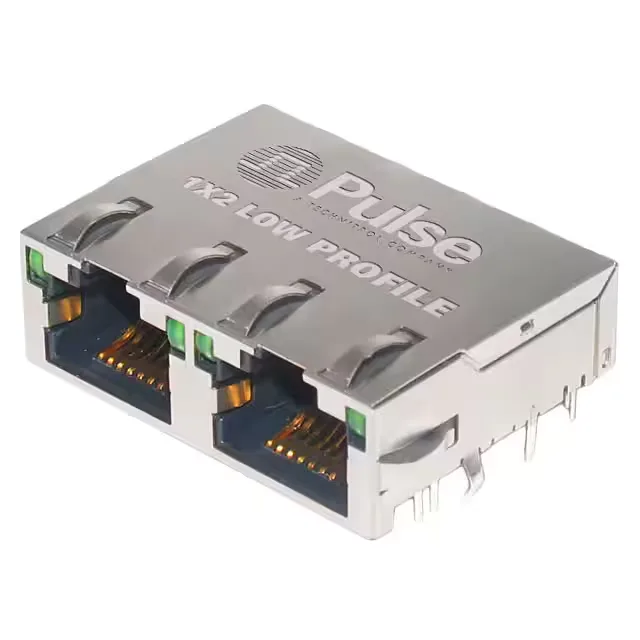

Pulse Electronics JGL-0004NL
MPNJGL-0004NL
Active
CONN JACK 2PORT 1000 BASE-T PCB
$20.82Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPULSEJACK™ JGL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PULSEJACK™ JGL |
| Mounting | Board Edge, Through Hole |
| Connector type | RJ45 |
| Operating temperature | 0°C ~ 70°C |
| LED color | Green - Green, Amber |
| Shield material | Brass |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Height above board | 0.376\" (9.55mm) |
| Package | Tube |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 2 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of cores per jack | 8 |
