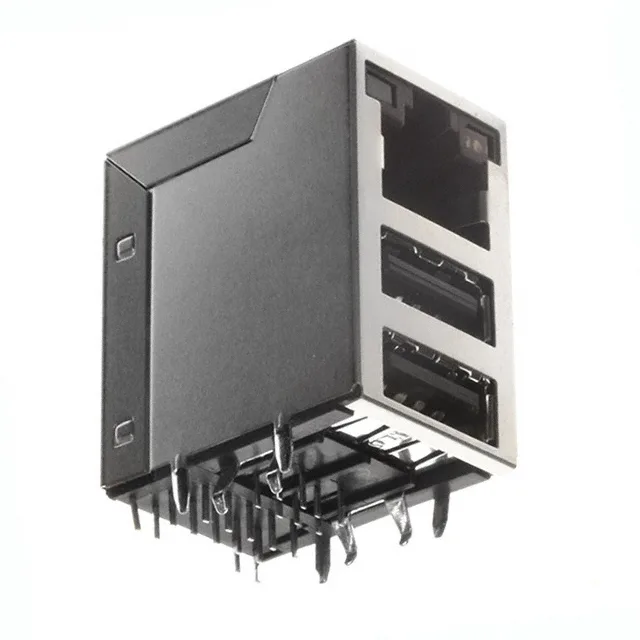

Pulse Electronics JW0-0006NL
MPNJW0-0006NL
Active
CONN JACK 1PORT 1000 BASE-TX PCB
$14.27Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPULSEJACK™ JW
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PULSEJACK™ JW |
| Mounting | Through Hole |
| Connector type | RJ45 with USB A, Dual |
| Operating temperature | 0°C ~ 70°C |
| LED color | Green - Green, Yellow |
| Shield material | Copper Alloy |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Height above board | 1.221\" (31.01mm) |
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100/1000 Base-TX, AutoMDIX |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 15.0µin (0.38µm) |
| Number of cores per jack | 8 |
