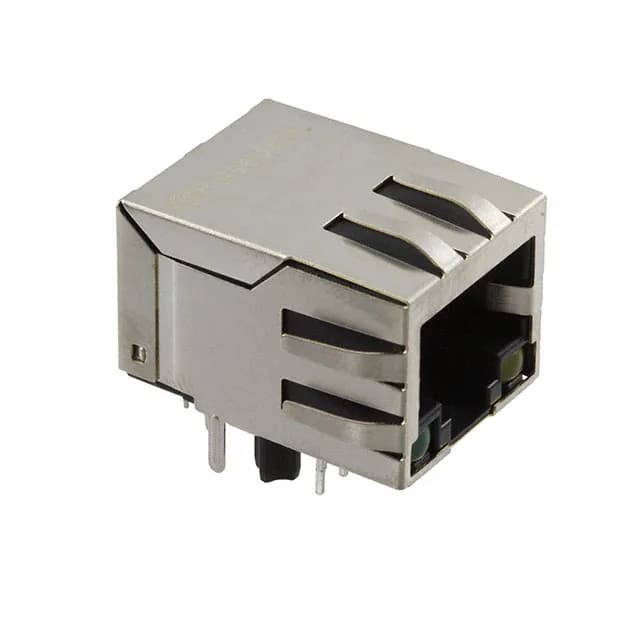

Pulse Electronics JXD0-0008NL
MPNJXD0-0008NL
Active
CONN JACK 1PORT 100 BASE-TX PCB
$6.1300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPULSEJACK™ JXD0
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PULSEJACK™ JXD0 |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | -40°C ~ 85°C |
| LED color | Green - Yellow |
| Shield material | Brass |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Height above board | 0.531\" (13.49mm) |
| Package | Tray |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Applications | 10/100 Base-TX, AutoMDIX |
| Tab direction | Down |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of cores per jack | 4 |
