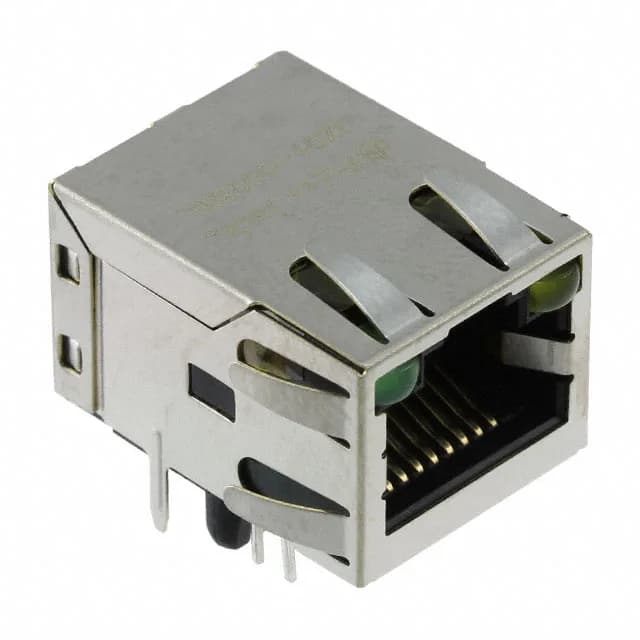

Pulse Electronics JXD1-0007NL
MPNJXD1-0007NL
Active
CONN JACK 1PORT PCB RF45 1X1
$7.5400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesPULSEJACK™ JXD1
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PULSEJACK™ JXD1 |
| Mounting | Through Hole |
| Connector type | RJ45 |
| Operating temperature | -40°C ~ 85°C |
| LED color | Yellow - Green |
| Shield material | Brass |
| Contact material | Brass |
| Housing material | Thermoplastic |
| Height above board | 0.528\" (13.40mm) |
| Package | Tray |
| Features | Board Lock |
| Shielding | Shielded, EMI Finger |
All specifications
| Parameter | Value |
|---|---|
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 30.0µin (0.76µm) |
| Number of cores per jack | 4 |
